perfect fit lasered endsurface EAS-X80-ELO made of anodized aluminum for profile endings. the endsurface (coverplate) has to be glued on at the profile ending, which creates a clean finish. informations to install the endsurface can be found in the assembly instructions.
Product:
SKU:
X83-13-SF-UP-PB
SKU:
X80-11-SF-OP-ELO
SKU: X80-11-SF-OP-ELO
ID 2018: X80/U10-A
height (a)
79,0 mm
width (b)
10,5 mm
length (l)
4,0 m

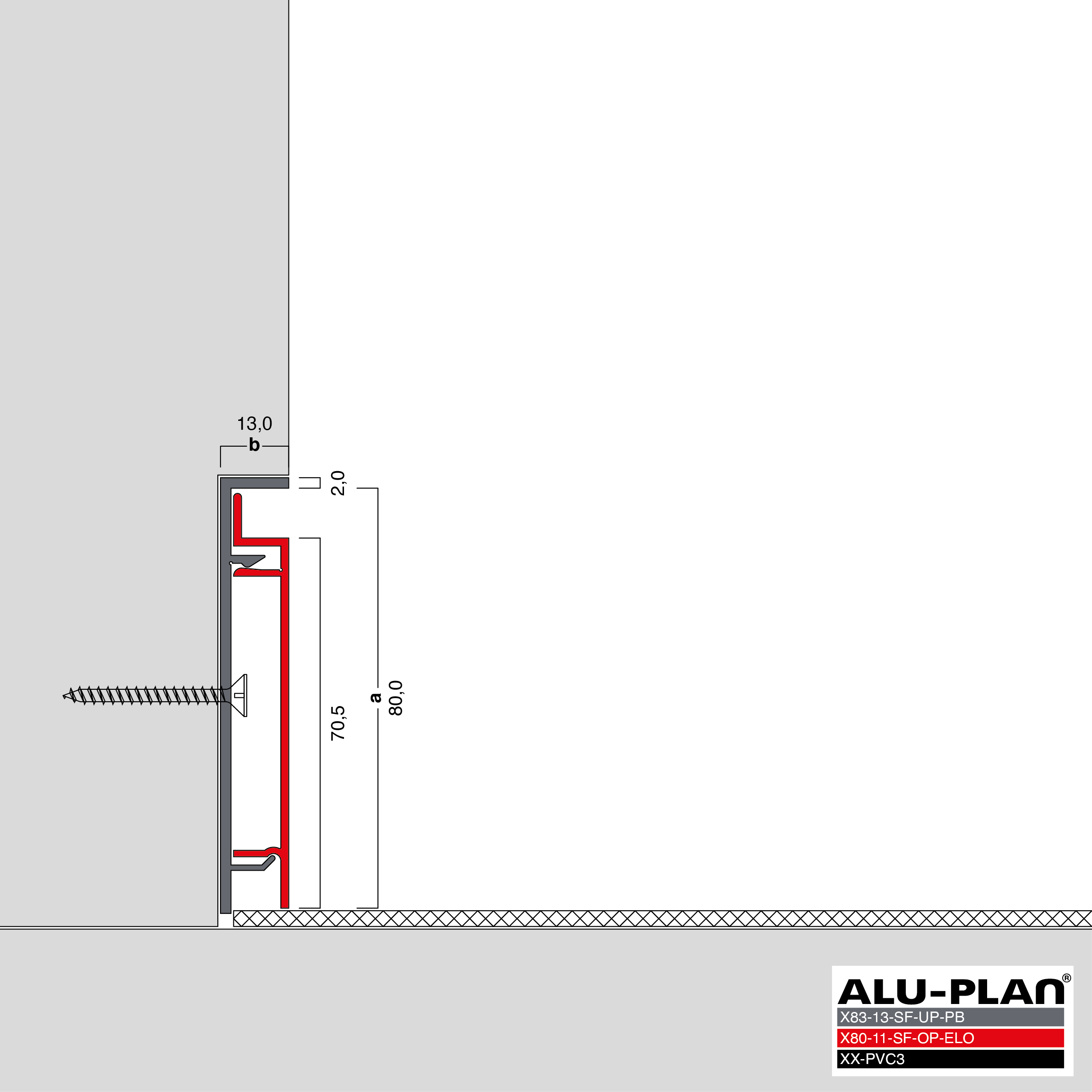

SKU: X83-13-SF-UP-PB
ID 2018: X80/U10
height (a)
83,0
width (b)
13,0 mm
strength (d)
2,0 mm
depth (BE)
11,0 mm
length (l)
4,0 m
Outside corner fitting AEF-X80-11-SF-OP-ELO
prefabricated outside corner fitting AEF-X80-11-SF-OP-ELO made of anodized aluminum with a lateral length of 245 x 245 mm, milled and unbent. the prefabricated fitting for outside corners makes it easier to create corners on site. the outside corner fittings simply need to be adjusted in length, bent and attached to the already installed sub-profile.
SKU:
AEF-X80-11-SF-OP-ELO
