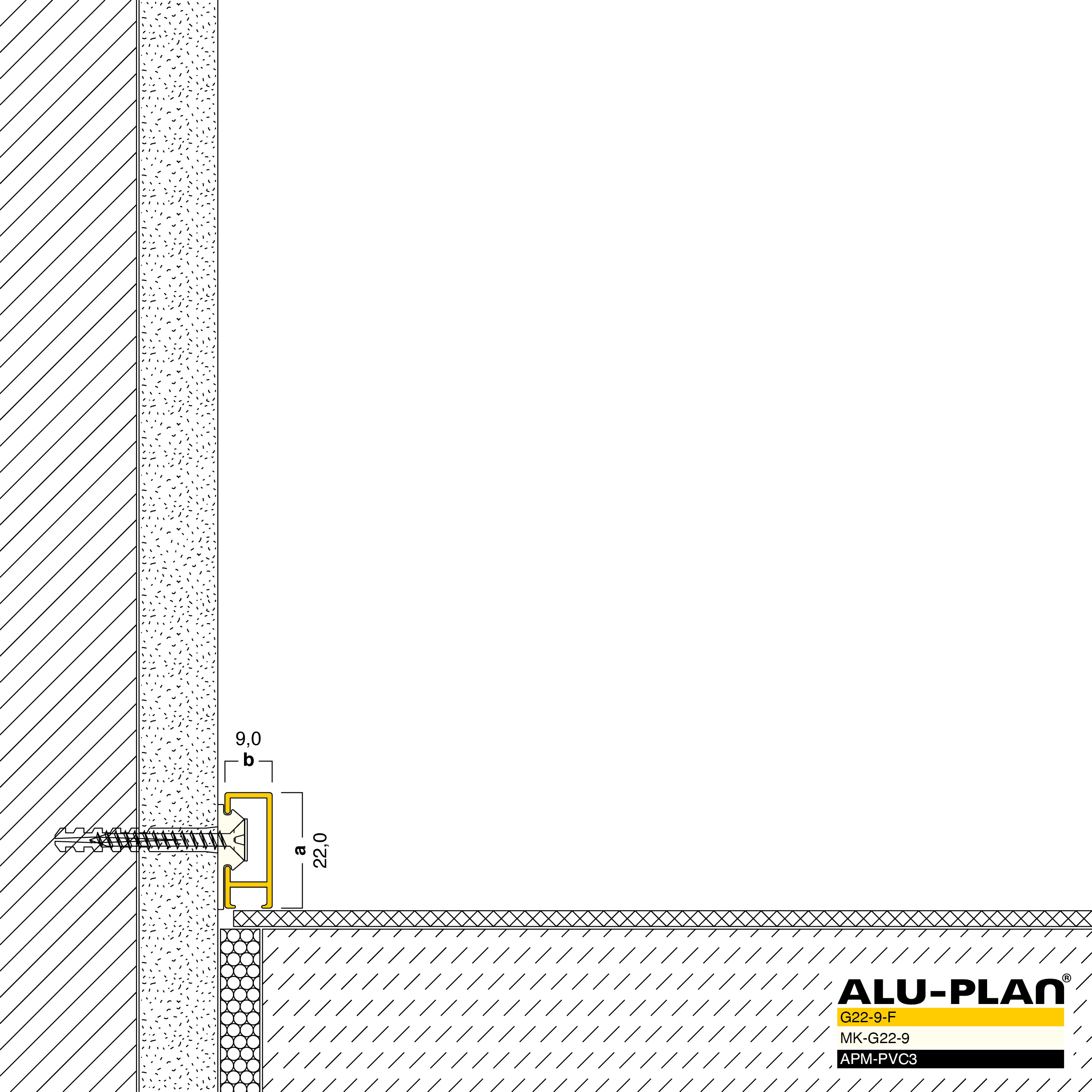

mounting clips MK-G22-9 for mounting the profiles on the wall. the clips, made of break-resistant polyoxymethylene, are mounted by simply screwing. if necessary, drilling and a dowel must be inserted. for a sufficiently stable installation, the clips should be attached at a distance of 40 to 50 cm.
Product:
SKU:
G22-9-F
SKU: G22-9-F
ID 2018: P1-F
height (a)
22,0 mm
width (b)
9,0 mm
length (l)
4,0 m
Endsurface EAS-G22-9-F
perfect fit lasered powder-coated endsurface EAS-G22-9-F made of aluminum with a colored surface for profile endings. the endsurface (coverplate) – with its simular color to the main profile – has to be glued on at the profile ending, which creates a clean finish. informations to install the endsurface can be found in the assembly instructions.
SKU:
EAS-G22-9-F
G22-9-F-APM-PVC3-detail-DE.pdf
G22-9-F-APM-PVC3-detail-DE.pdf
G22-9-F-APM-PVC3.dxf
G22-9-F-APM-PVC3.dxf
tender specifications :: baseboards :: G series :: powder-coated aluminium
sockelleisten-SERIE-G-ELO-AP-EN.DOC
assembly note :: baseboards :: G series :: (german language)
aluplan-montage-serie-G-DE.pdf
