mounting clips MK4 for mounting the profiles on the wall. the clips, made of break-resistant polycarbonate, are mounted by simply screwing. if necessary, drilling and a dowel must be inserted. for a sufficiently stable installation, the clips should be attached at a distance of 40 to 50 cm.
Product:
SKU:
G140-14-F
SKU: G140-14-F
ID 2018: G140x14-F

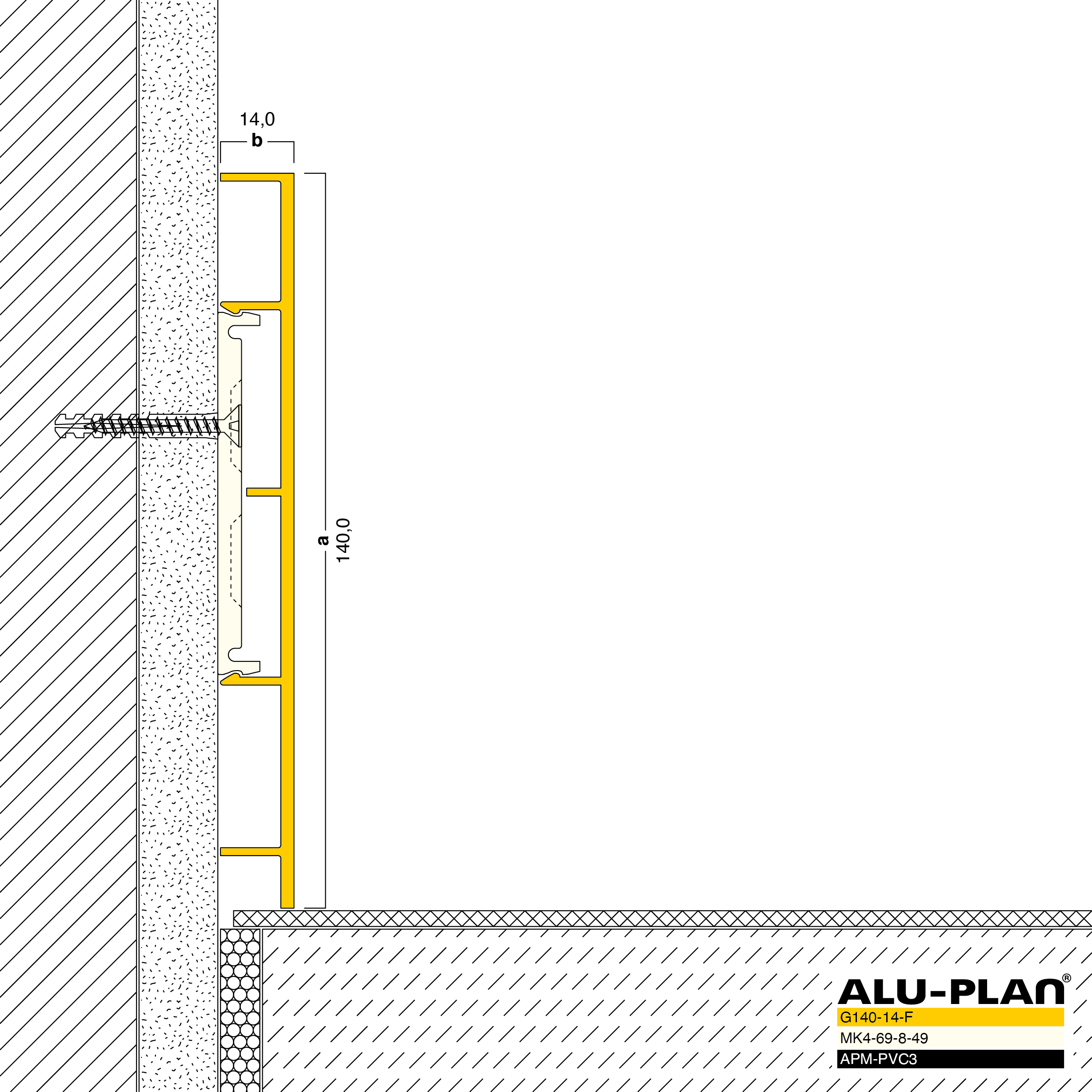

height (a)
140,0 mm
width (b)
14,0 mm
length (l)
4,0 m
Mounting Clip MK4
SKU:
MK4-69-8-49
Endsurface EAS-G140-14-F
perfect fit lasered powder-coated endsurface EAS-G140-14-F made of aluminum with a colored surface for profile endings. the endsurface (coverplate) – with its simular color to the main profile – has to be glued on at the profile ending, which creates a clean finish. informations to install the endsurface can be found in the assembly instructions.
SKU:
EAS-G140-14-F
Outside corner fitting AEF-G140-14-F
prefabricated powder-coated outside corner fitting AEF-G140-14-F made of aluminum with a lateral length of 245 x 245 mm, milled, bent and spot-welded. the prefabricated fitting for outside corners makes it easier to create corners on site. the outside corner fittings simply need to be adjusted in length and attached to the mounting clips.
SKU:
AEF-G140-14-F
G140-14-F-APM-PVC3-detail-DE.pdf
G140-14-F-APM-PVC3-detail-DE.pdf
G140-14-F-APM-PVC3.dxf
G140-14-F-APM-PVC3.dxf
assembly note :: baseboards :: G series :: (german language)
aluplan-montage-serie-G-DE.pdf
